JCA Systems produces both standard and customised products for the vending and gaming industries:
Vending Products
• Vending Machine Controllers (VMC)
• EasyVend standard VMC
• Custom VMC’s
• MDB Interfaces / Special Products
• Remote Audit and Management
Gaming Electronics / Amusement Electronics
These products are described in our www.sitemanagersolutions.com website
Vending Machine Controllers

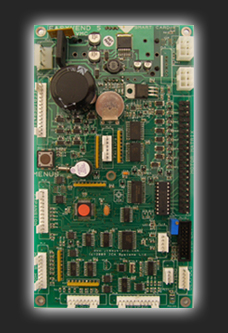

EasyVend Series 5 VMC
• up to 80 selections (8 rows of 10 columns)
• MDB payment - Coin, Card, Note
• 2 x 20 line character display (LCD or electro-luminescent)
• Full Audit and DEX interface
• Alphanumeric matrix keypad
• Ability to control three satellite machines making a total of 320 product selections
• Refrigeration control of two zones
• Health and Safety lockout
• Smart card utility to control settings
• Alternative programmable language
• Menus
• 24v AC powered
EasyVend Series 3 VMC
• up to 60 selections (6 rows of 10 columns)
• MDB payment - Coin, Card, Note
• 4 digit LED numeric display
• Full Audit and DEX interface
• Alphanumeric matrix keypad
• Refrigeration control of one zones
• Health and Safety lockout
• Smart card utility to control settings
• Menus
• 24v AC powered
Custom vending machine controllers
Most of the Vending Machine Controllers supplied by JCA Systems are customised for specific machines, or ranges of machines.

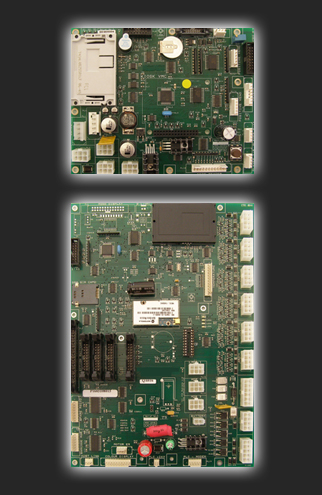

The pictures below illustrate a couple of the VMC’s we have designed and produced.
We have a large number of hardware and software modules available that we can cut and paste together to produce new VMC designs. Depending on the complexity of the application we are able to produce first prototypes in 6 - 8 weeks, however we have exceptionally produced a first production batch of 100 boards in under 5 weeks!
Design Libraries include
Payment systems
Coin acceptors
Note/Bill validators
MDB - Coin, Bill (note) and card
LCD
LED
Power
Mains
Battery / low power with wake-up
DC
Product Dispensing
Relay drive
Semiconductor Drive
with / without stock sensing
with / without cycle sensors
Selection
Discrete switches
Matrix switches
Other facilities
Full Audit with electronic data transfer
Remote Audit
Set-up Menus
plus many more
Email us with your specification or requirements for a quotation. We have a checklist that can help you specify your VMC.
Remote Audit and Management
The JCA Vending Remote Audit system is closely related to the Site Manager gaming audit system we produce and offers a number of powerful features:
• Fast reporting of alarm conditions, e.g. Cashbox removal, door opened etc.
• Integral audit counters.
• Stock “low-level” warning alerts
• Remote machine configuration
• Remote operation, e.g. power cut-off
• Easy machine installation
• Real time clock for timed reports
Please email us if you have specific audit requirements.

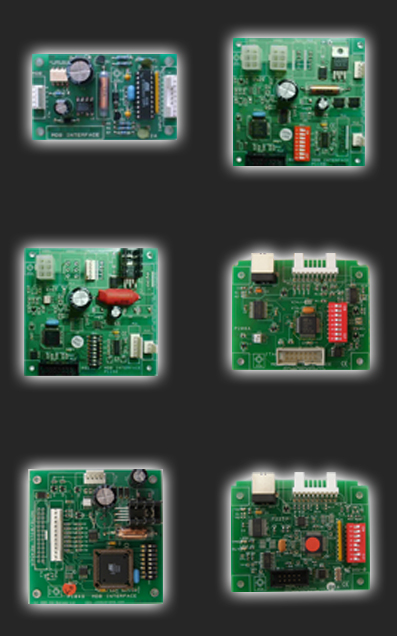

MDB Interfaces / Special Products
MDB Creditor
Use low cost standard relay / open collector output payment devices (coin, bill or card) to generate credit in a MDB vending machine.
Data sheet
RS232 or USB to MDB Interface (Master)
Operate standard MDB Coin Changegiver, Bill/Note readers, Card readers and satellite vending machines from a PC with this adapter.
Data sheet
RS232 to MDB(Slave) /Executive Interface (Slave)
Operates in the Vending Machine as a Card Reader, but controllable via RS232.
Data sheet
USB to MDB/Executive Interface (Slave)
Operates in the Vending Machine as a Card Reader, but controllable via RS232.
Data sheet
Bill/Note Reader Interface
Use lower cost 12v DC Bill / Note Readers in a MDB machine with this interface. Use with Astrosystems, JCM, Lumina, Smiley etc.
Data sheet
MDB Monitor board
Allows the MDB traffic in a vending machine to be monitored. Filter switches can isolate specific peripherals.
Data sheet
Custom Items
We have also produced a number of custom interfaces, keyboards, displays and other items.
Please email us with your particular requirements
